Results

S-FRAME: Graphical Results (p654), Numerical Results (p662), Spreadsheet (p670), Member results (p182).

Run Linear Static (F5, Home › Analysis) runs the selected case or combination; the first run opens a Graphical Results window. Results are per physical member and are cleared when the model changes.

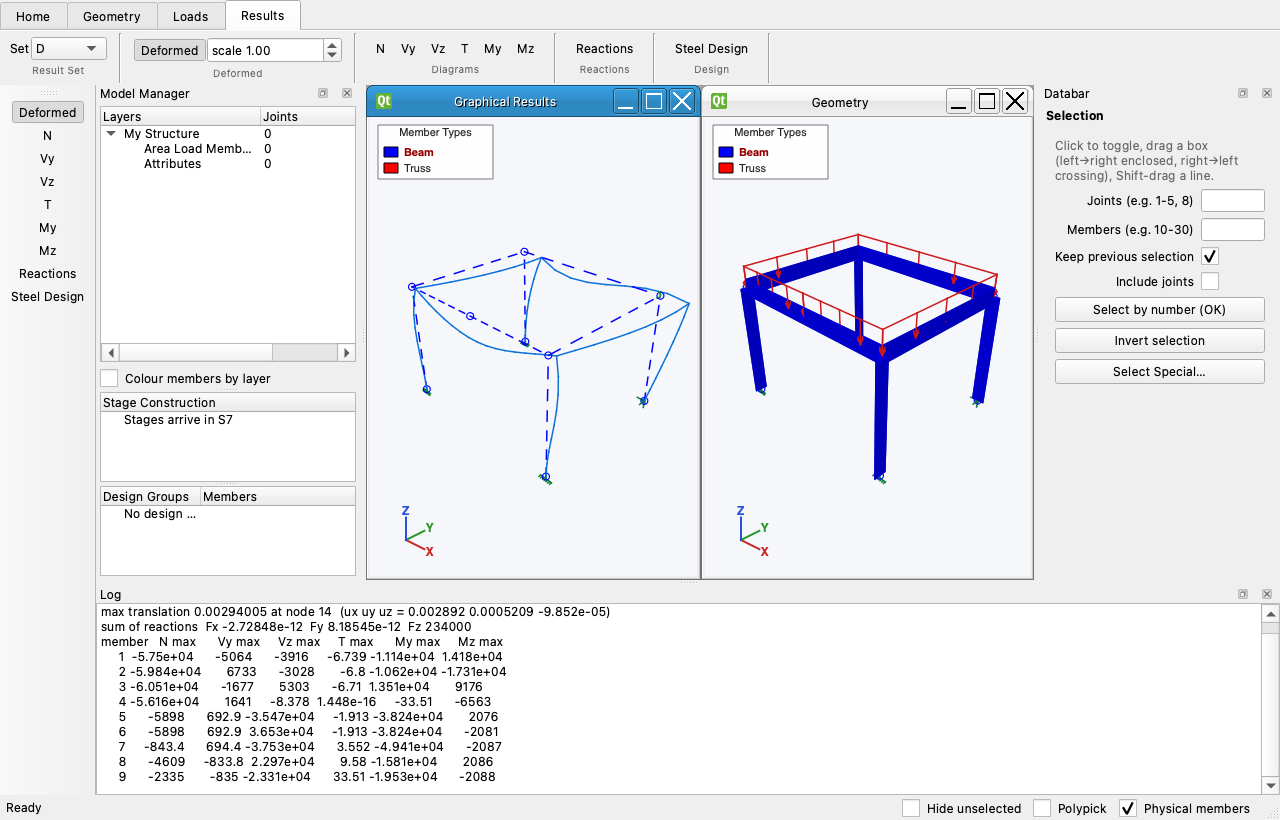

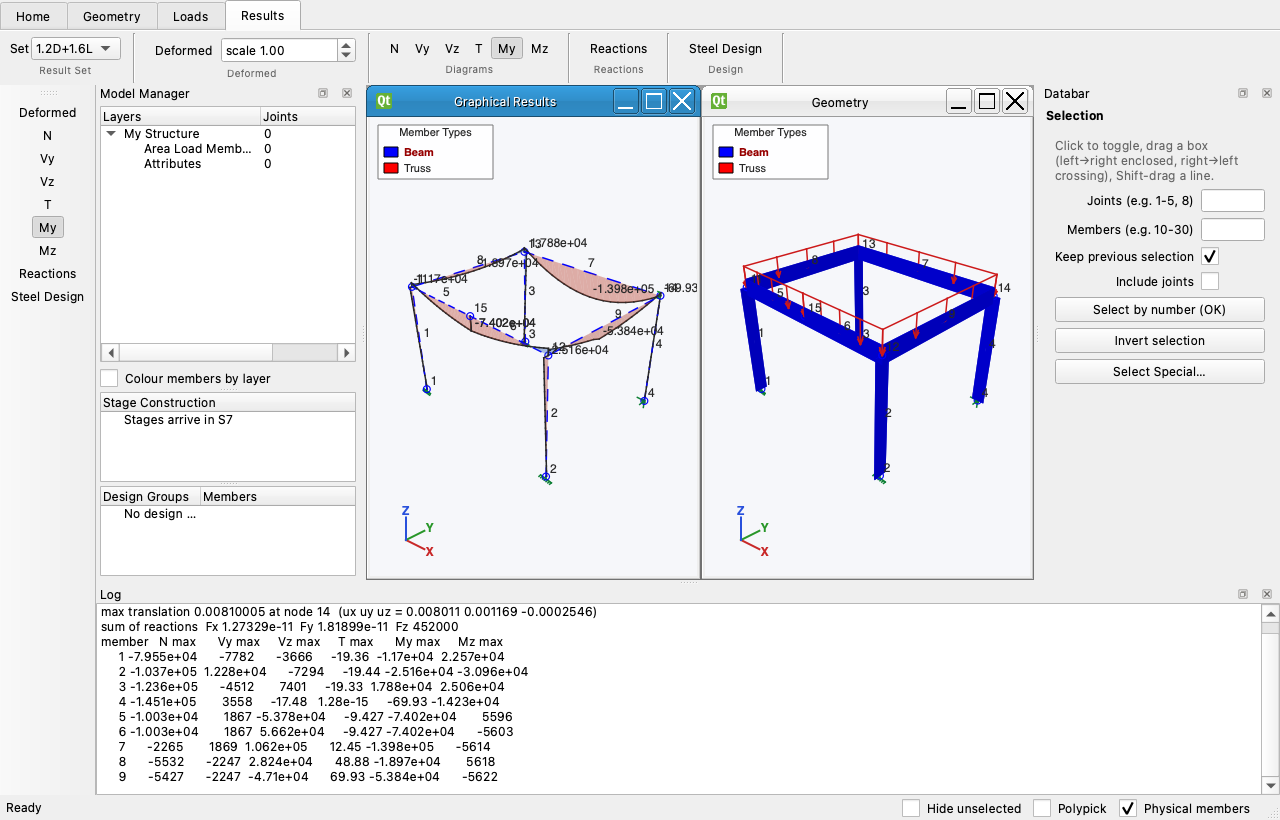

Deformed scales the deflected shape; N, Vy, Vz, T, My, Mz draw station-force diagrams (moment on the compression side as in S-FRAME); Reactions draws the support forces; Labels writes the extreme values.

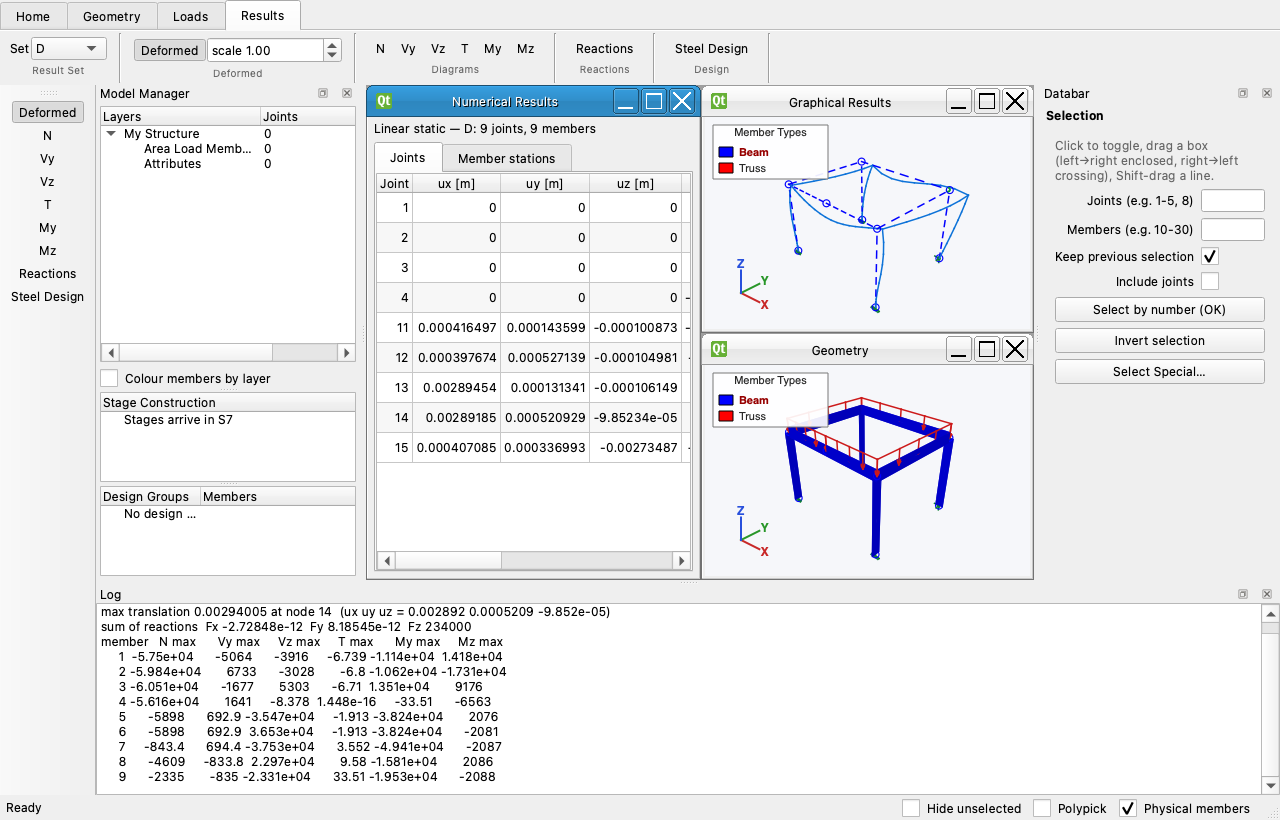

The Numerical Results window lists joint displacements and reactions, and member forces at every station; right-click a member › Member results filters it to that member. Ctrl+C copies cells as tab-separated text.

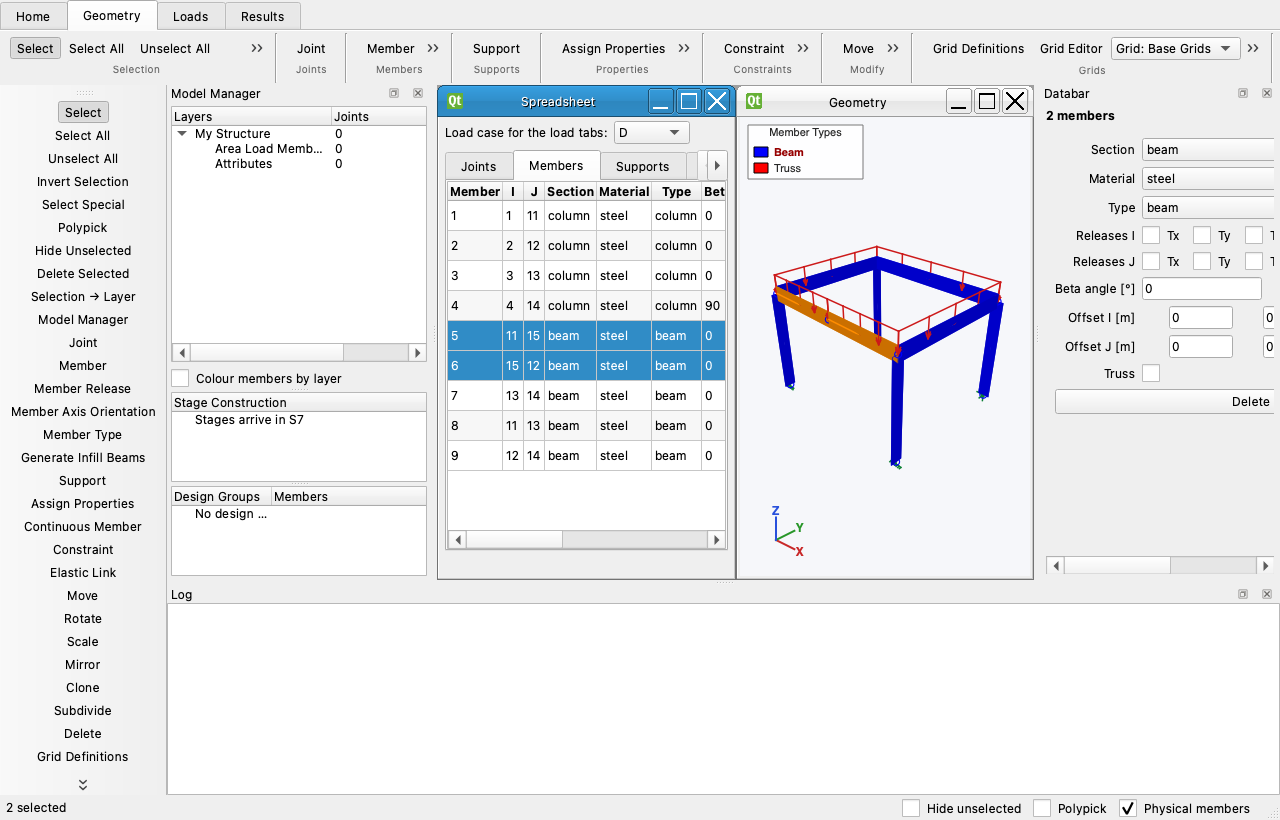

The Spreadsheet window edits Joints, Members, Supports, the loads of a case, Materials (with α), Sections (with Asy/Asz) and Combinations; its rows and the viewport selection follow each other.
